PD Test for Generator and Motor
-
- PD-MIMSTM
-
Mountable Type
- On-line continuous partial discharge monitoring system for Generator and Motor
Product Description
- The PD-MIMS (Motor Insulation Monitoring System) detects Partial Discharge (PD) coming from the inside of high voltage motors and generators.
- PD-MIMS continually monitors and stores test results
- Detects abnormal conditions in motors and generators giving early warning when action is needed to prevent failure
- Reduces maintenance costs and operational expenses
- This test device continuously scans between 200 KHz - 300 MHz
Features
-
- PD-MIMS is an on-line Partial Discharge (PD) diagnostic system, which detects and analyzes the generation of PD signals in generators and motors.
- PD-MIMS provides user-friendly software, which allows access to measured data from a remote office using RS-485 and LAN.
- PD-MIMSM also provides software which is designed to analyze, manage, and interpret measured data and can be set to report daily, weekly or monthly.

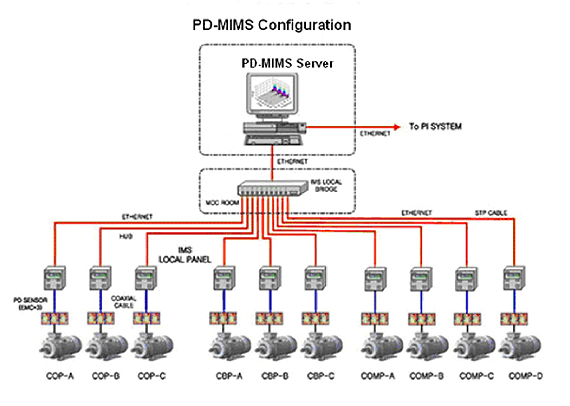

System Configuration
-
