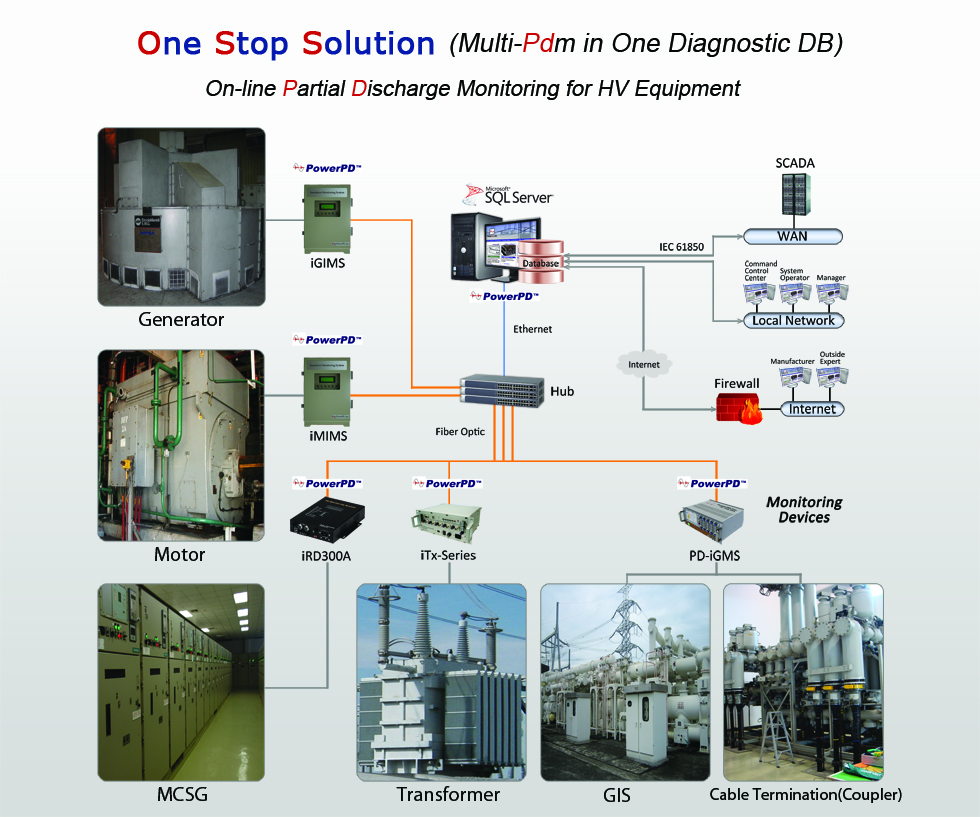

One Stop Solution
Multi-Pdm in One Diagnostic DB
On-line Partial Discharge Monitoring for HV Equipment
On-line Partial Discharge Monitoring for HV Equipment

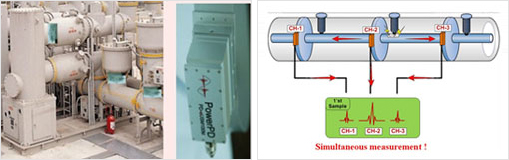

PD Test for GIS and Cable Termination/Joint
-

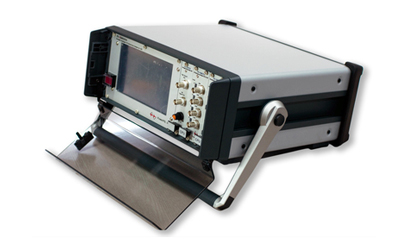

- PD-iGMS-P8ATM
-
Portable Type
- On-line diagnostic system which periodically monitors partial discharge in GIS (Gas insulated switchgear) and Cable Terminations
Product Description
- The PD-iGMS-P8A is a portable online diagnostic system which periodically monitors partial discharge in GIS (Gas insulated switchgear). PD-iGMS-P8A will detect and analyze UHF signals by UHF Sensor module with built in LNA (Low noise amplifier) and frequency modulator to distinguish between real PD (partial discharge) signals and external noise signals similar to that of partial discharge signals. Also the PD-iGMS-P8A provides software which is designed to analyze, manage, and interpret measured data and can be set to report daily, weekly or monthly.
Features
-
- Portable, use AC power source
- Connects to your laptop via LAN port
- Used on fully loaded and energized electrical equipment, completely non-intrusive
- Level Display and Touch Screen
- Built In surge protector
- Sensitivity ≤ 5pC

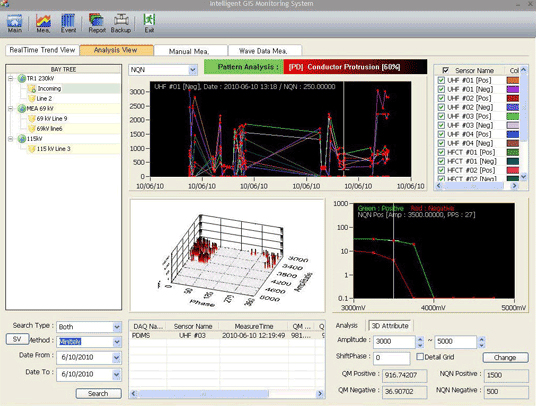

Screen Shots
-
